Xe nâng kéo Pallet điện STILL EXH 14-20 PLUS tải trọng nâng 1,4 tấn-2,0 tấn.

Thông tin về xe nâng kéo pallet điện STILL EXH 14-20 PLUS:

1. Video giới thiệu xe nâng kéo Pallet điện EXH 14-20 Plus:

2. Thông số kỹ thuật chung của EXH 14-20 Plus:

Model	Maximum capacity (kg)	Maximum lift height (mm)	Travel speed (km/h)	Battery voltage (V)
EXH 14/Li-Ion	1.400	125	6.0	24
EXH 16/Li-Ion	1.600	125	6.0	24
EXH 18/Li-Ion	1.800	125	6.0	24
EXH 20/Li-Ion	2.000	125	6.0	24
EXH 20 Plus/Li-Ion	2.000 (2.300)	125	6.0	24



3. Các tính năng nổi bật của xe nâng EXH 14-20 plus:

VẬN HÀNH DỄ DÀNG

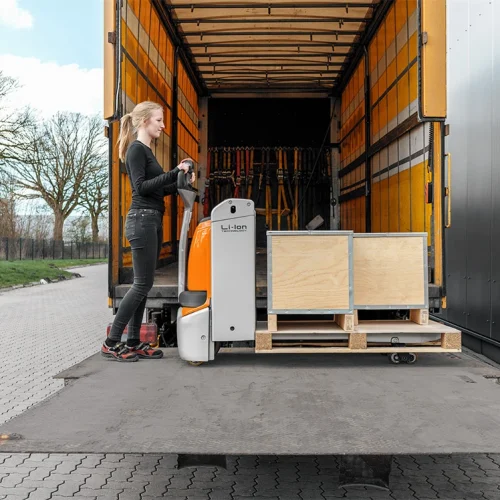

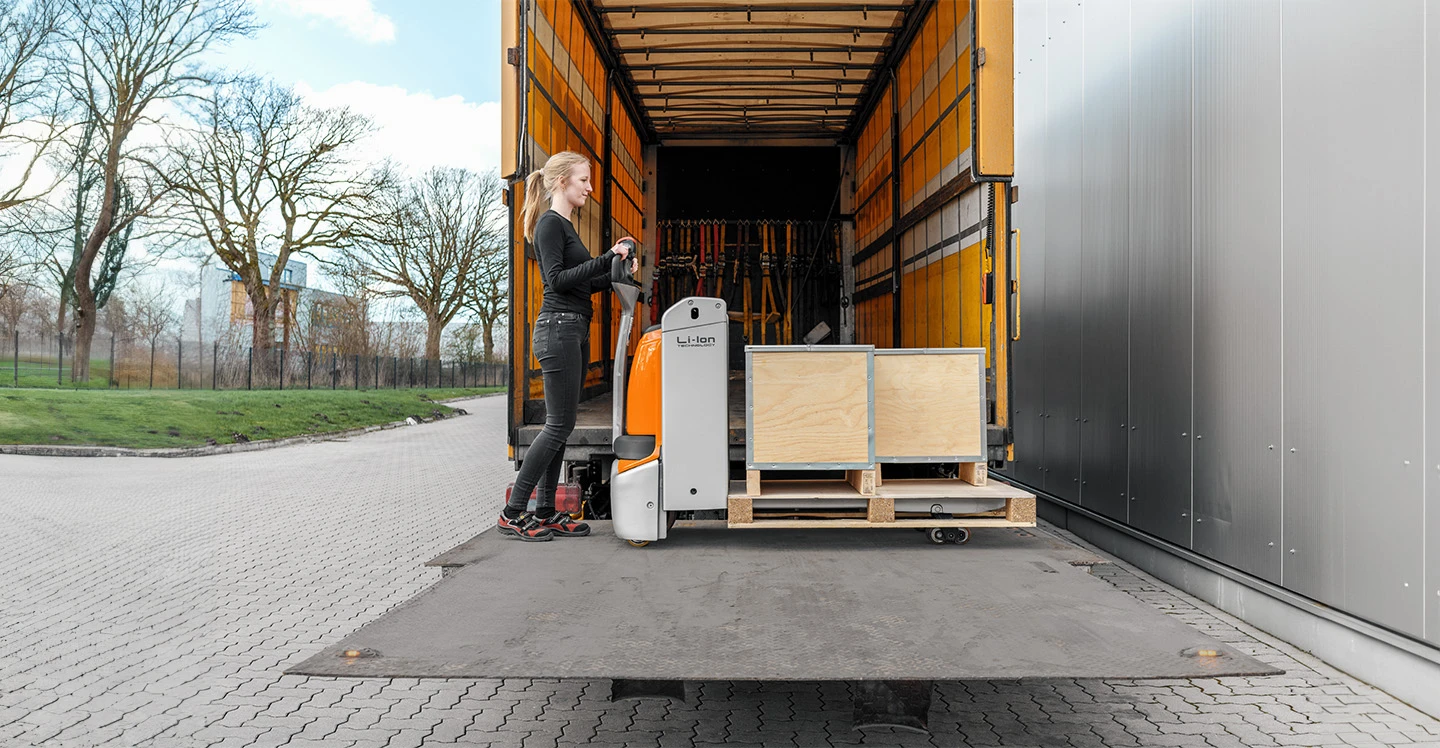

	Safe driving up and down ramps with optimal traction thanks to spring-loaded support rollers

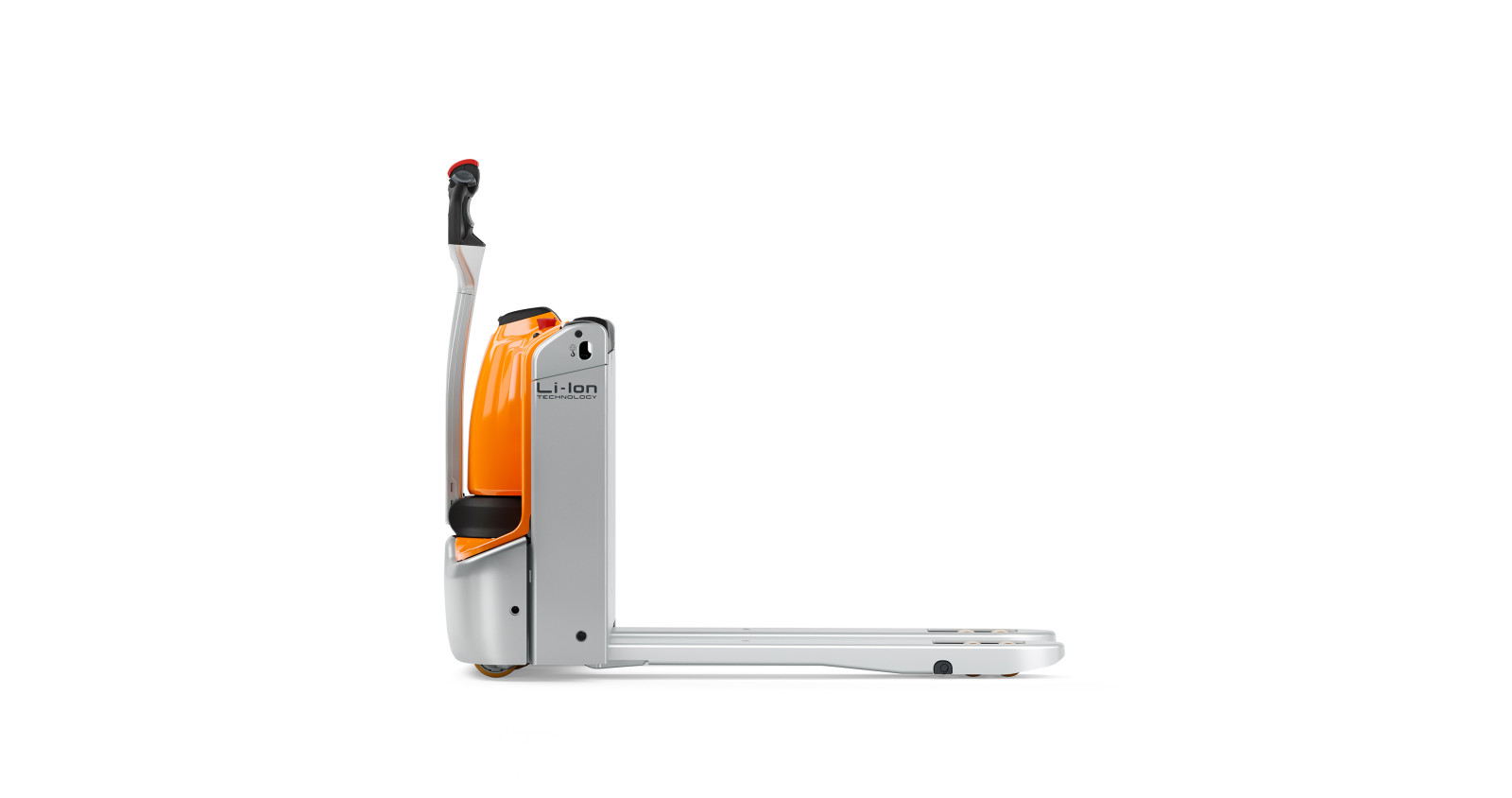

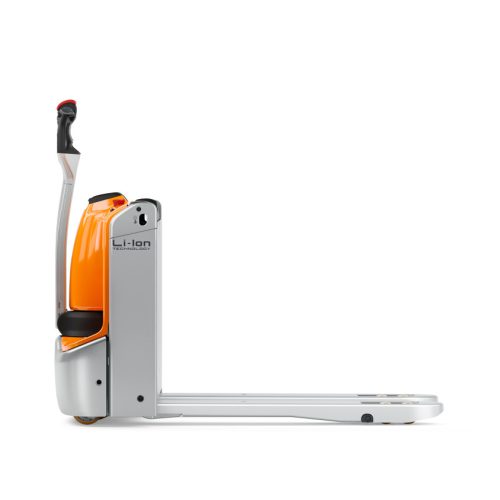

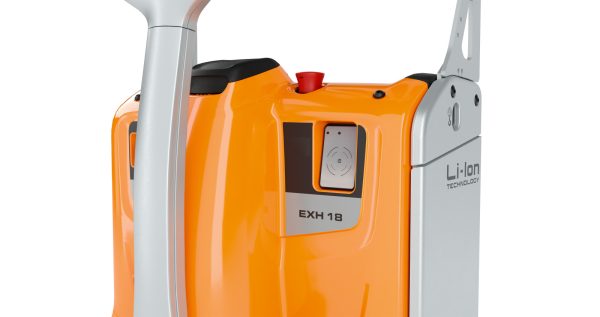

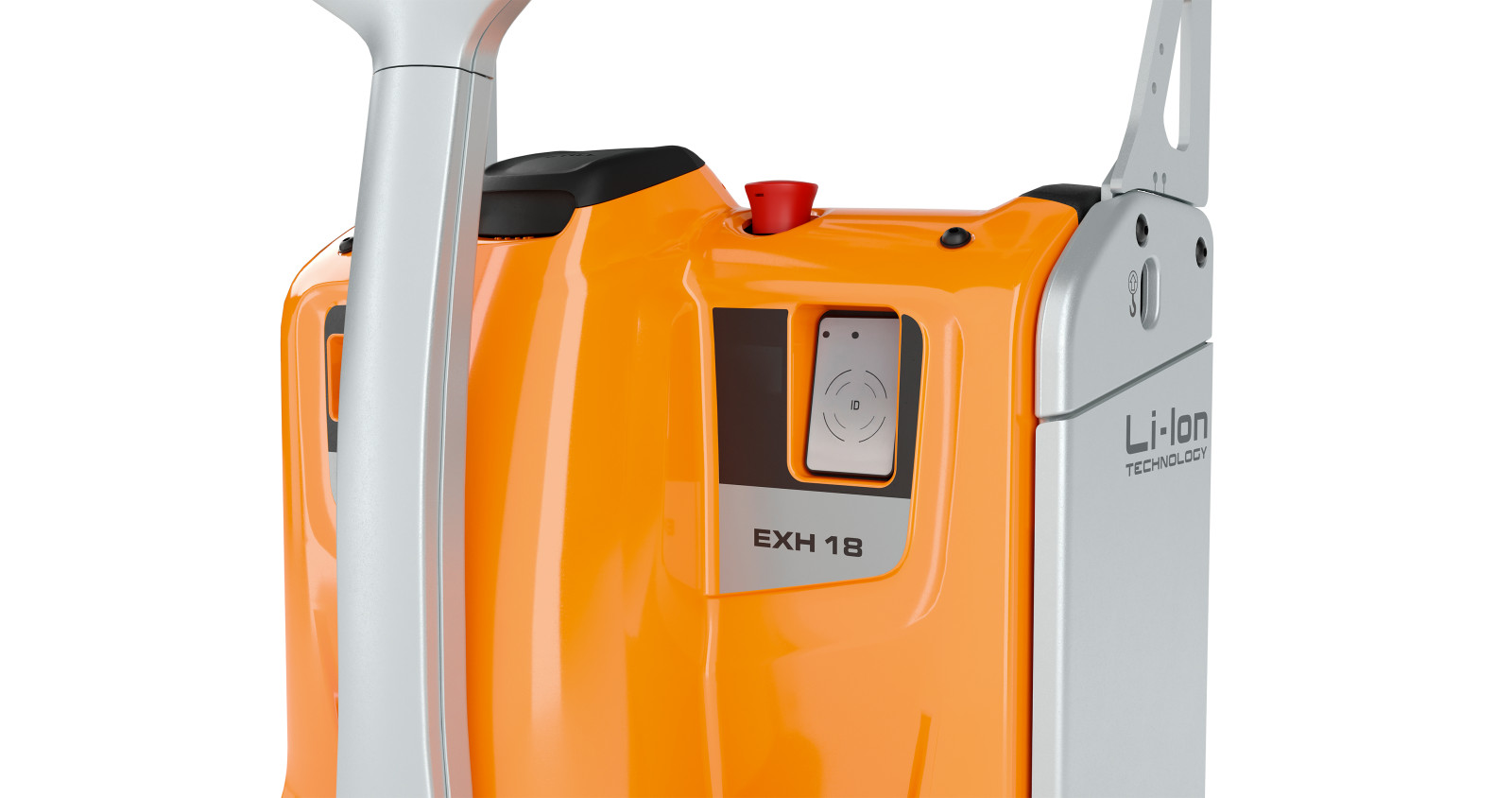

	Precisely manoeuvrable, even in the smallest of spaces: compact dimensions thanks to integrated lithium-ion battery in the EXH 14–20 Plus

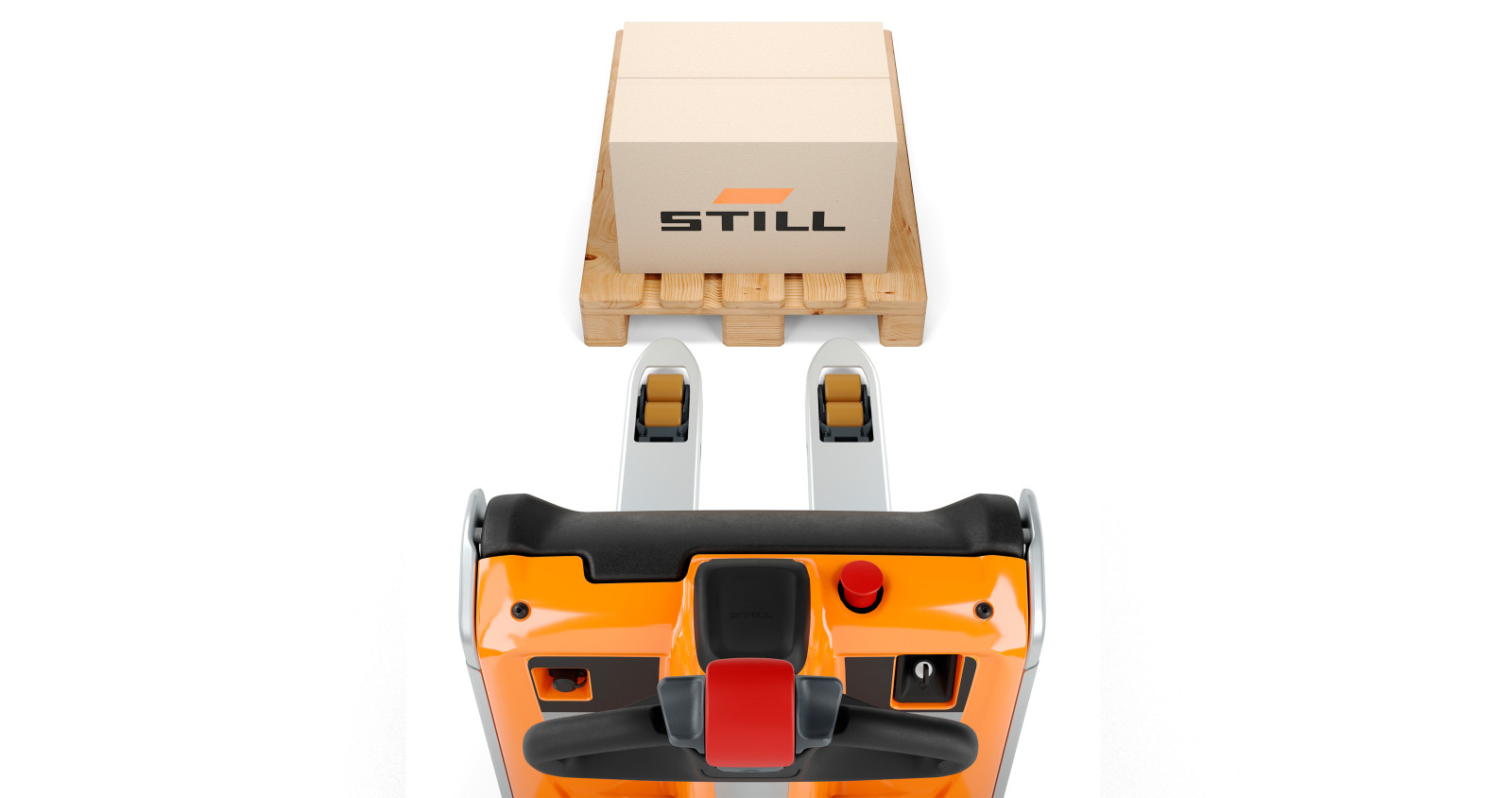

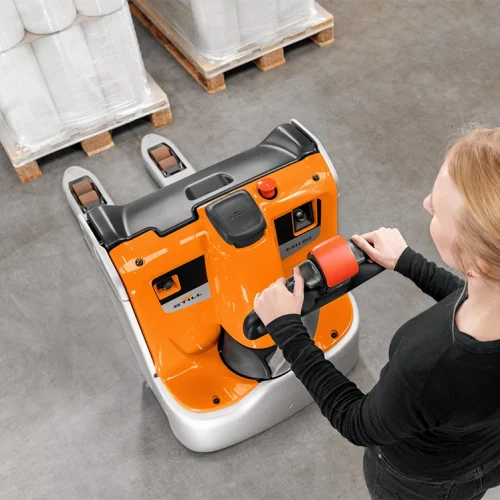

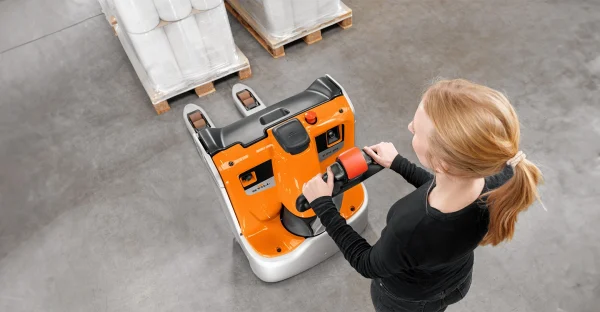

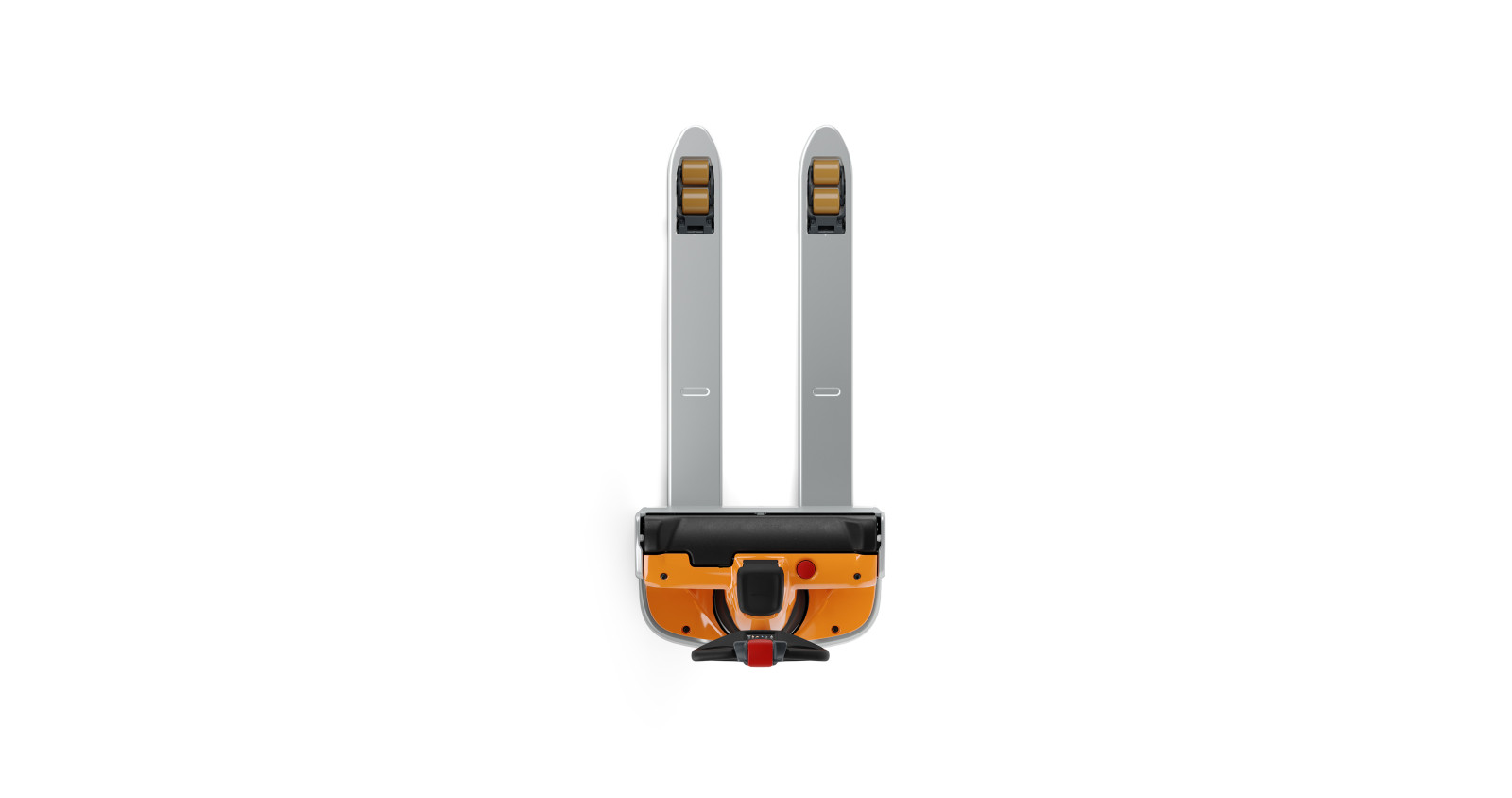

	Best views for precise operation: clear view of the tips of the forks and centrally mounted tiller

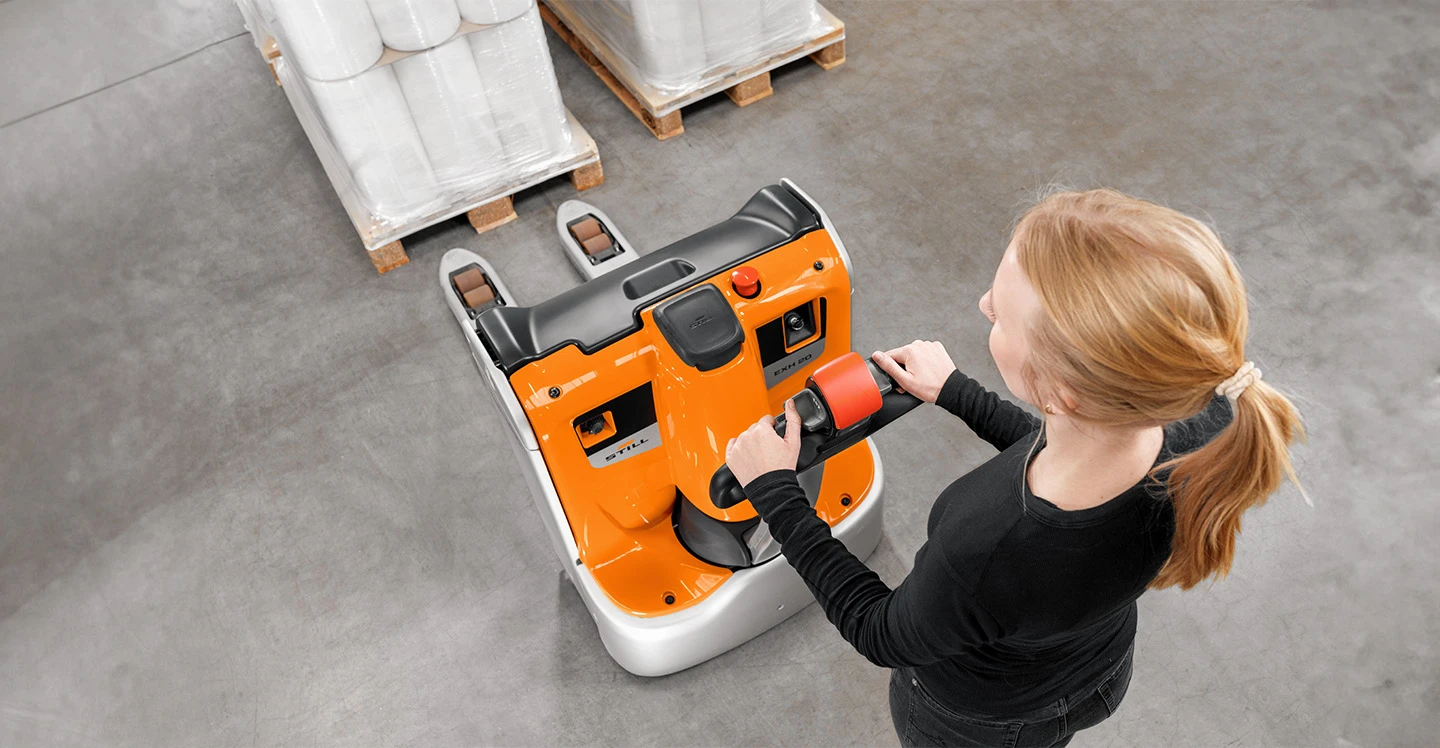

	One-handed operation means both left and right-handed users can intuitively operate all of the driving, lifting and lowering functions

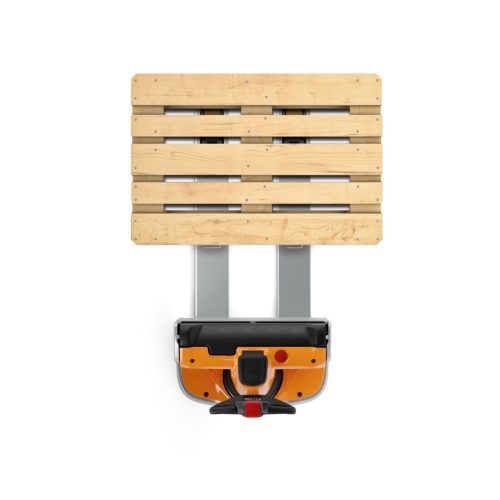

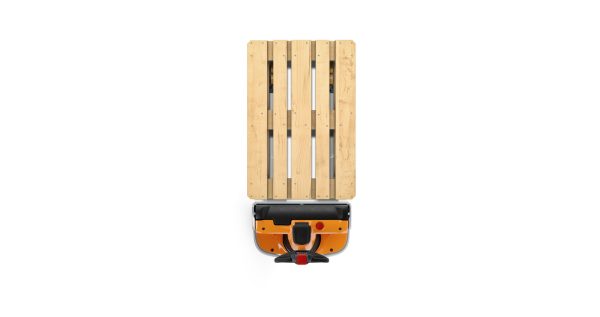

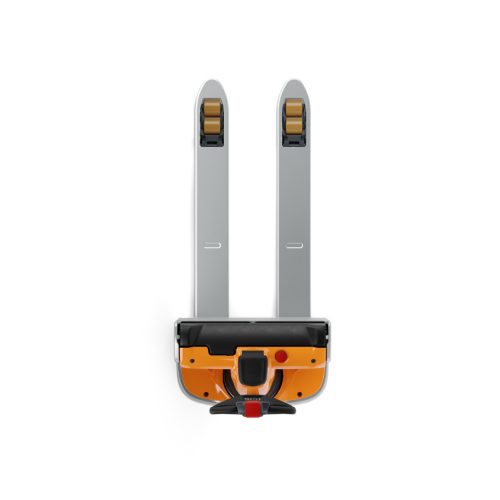

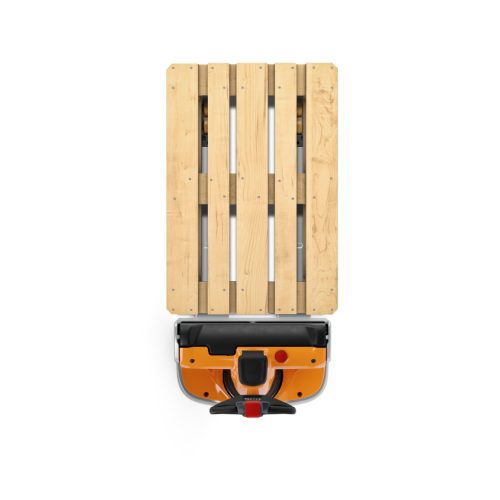

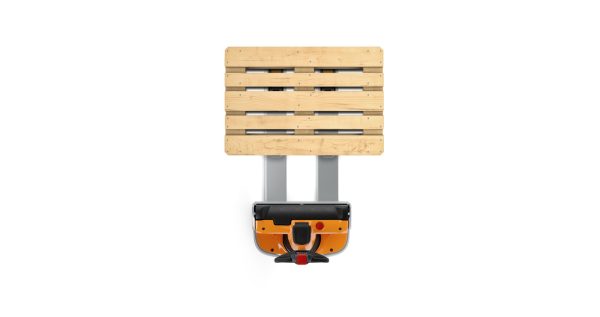

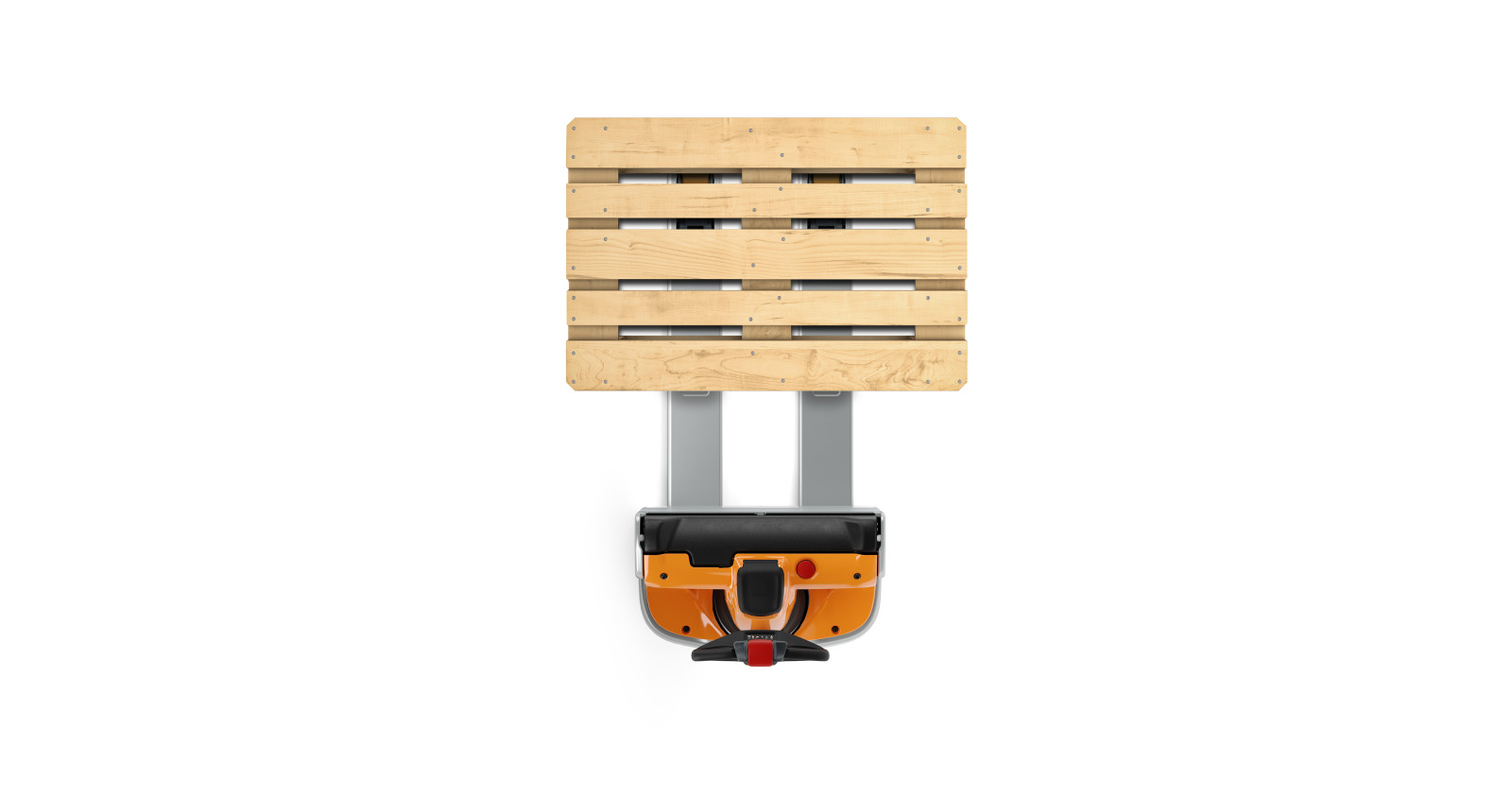

	EXH 14–20 Plus trucks are easy to position for lateral pallet lifting thanks to smart fork marking



SỨC MẠNH VƯỢT TRỘI
	Always ready to get the job done: powerful, reliable and lowmaintenance electrical drive and steering motor
	Virtually no interruptions: battery capacity of up to 250 Ah with lateral battery change or interim charging of lithium-ion battery
	The right driving programme for every situation: maximum turnaround or maximum efficiency – ECO, BOOST and Blue-Q



AN TOÀN HÀNG ĐẦU
	Makes work easier: easy-to-use, ergonomic tiller
	Effective protection for feet: low-lying truck frame
	Safe yet speedy at all times: OptiSpeed automatically adapts the speed to the tilt angle of the tiller
	Stays on track around every bend: Curve Speed Control automatically adapts speed to the steering angle when cornering
	Safe manoeuvrability in confined spaces thanks to the vertical tiller position
	Maximum safety in tight spaces with the optional active foot protection guard on the EXH 14–20 Plus



VẬN HÀNH LINH HOẠT

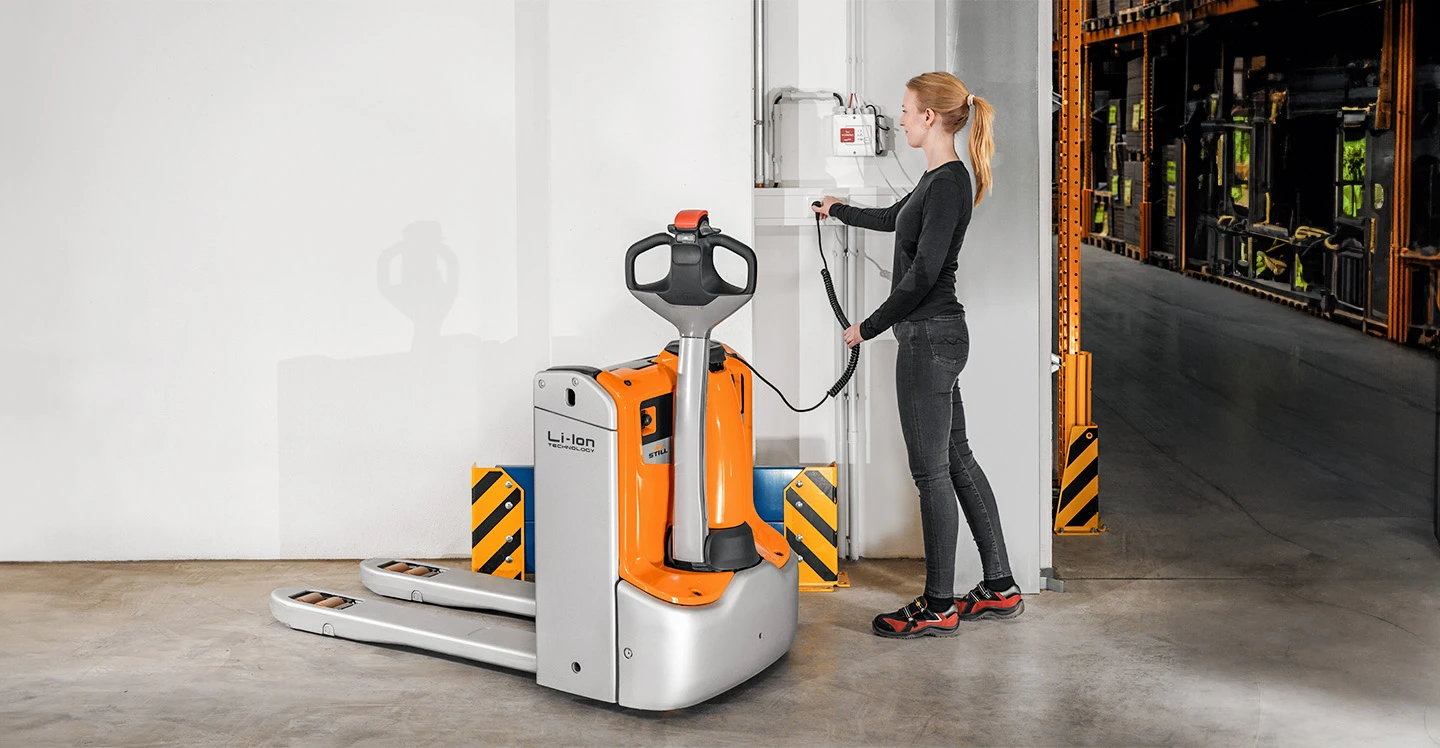

	Flexible and decentralised charging with optional built-in charger
	Battery changes made easy: lateral battery change option for excellent availability with maximum safety
	Optimal availability, tailored to your specific requirements: selection of different battery technologies and capacities
	If additional equipment is required or desired to make work easier (e.g. scanners), it can be simply and securely attached to the optional accessories bracket for easy accessibility



KẾT NỐI THÔNG TIN
	All relevant information is available at a glance thanks to the intelligently positioned display

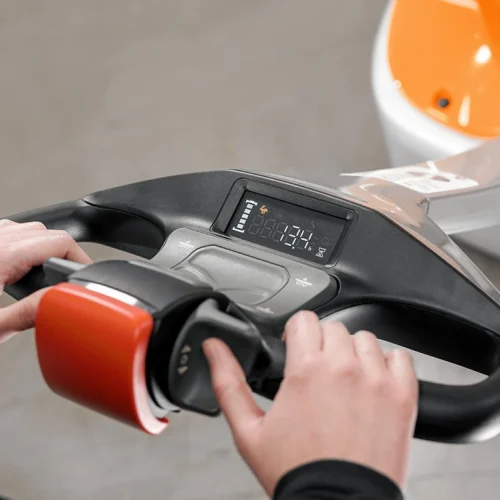

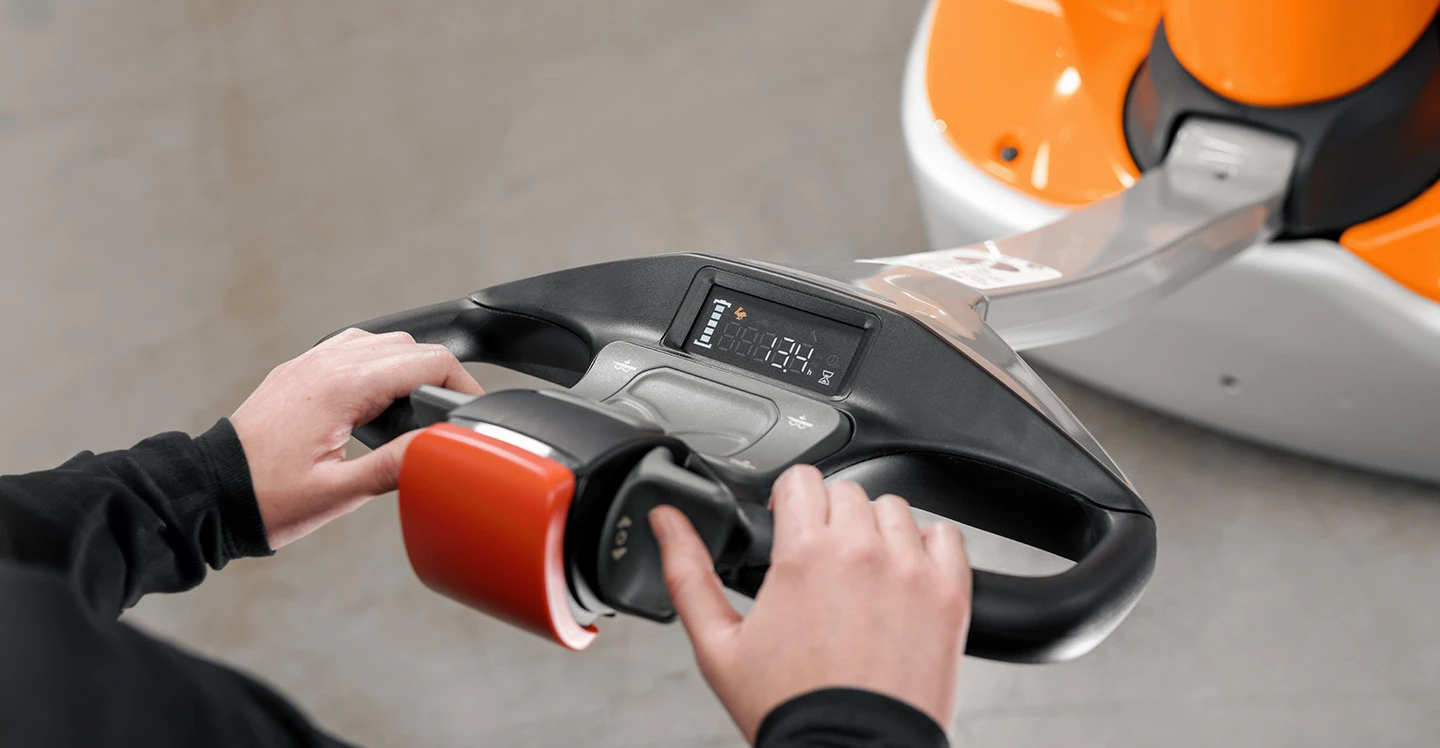

	All important vehicle information is in the operator’s field of view thanks to the integrated display in the tiller head on the EXH 14–20 Plus pallet truck

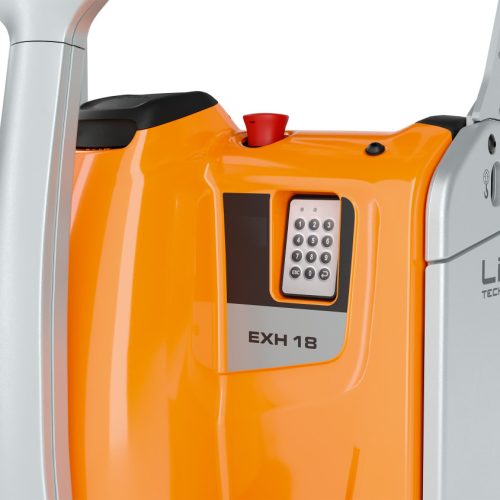

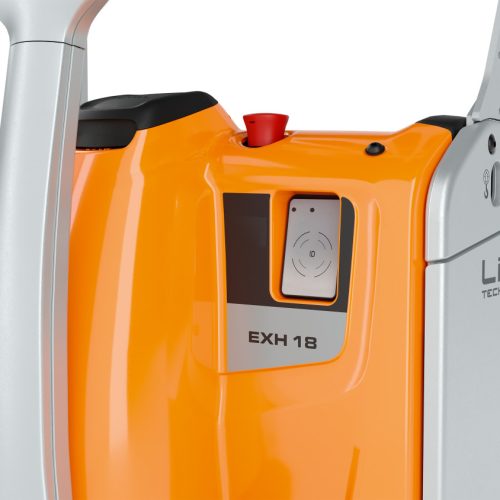

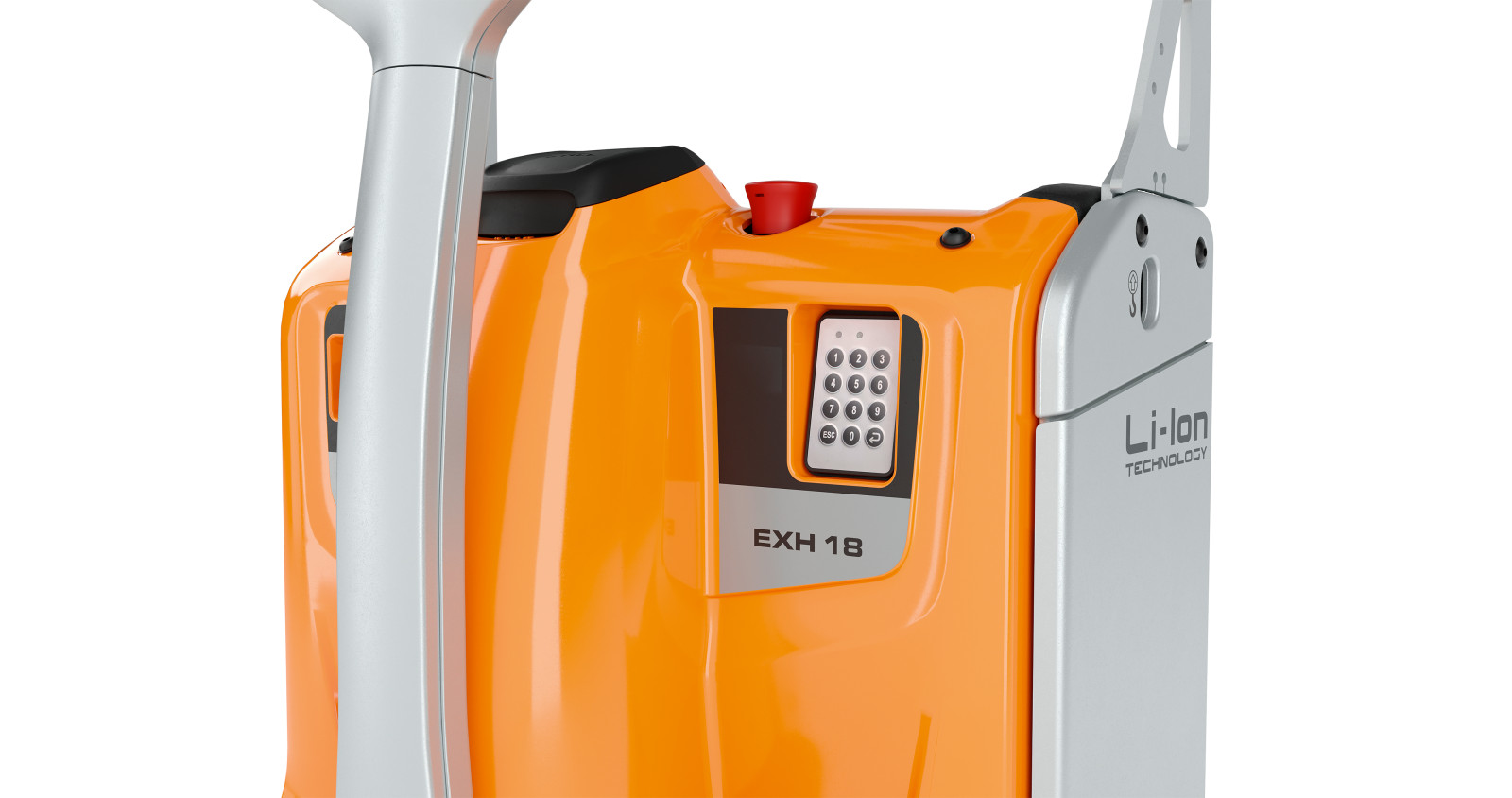

	Individual access authorisations thanks to various access control options

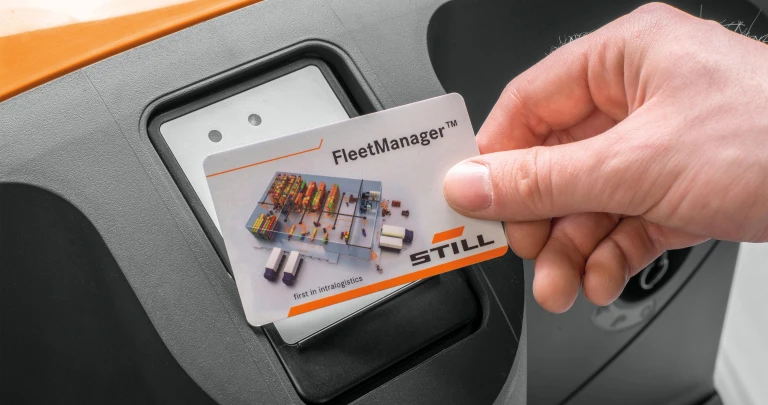

	All fleet data can be viewed and analysed in real time with the optional FleetManager 4.x



4. Catalogue:

EXH_EXU-H_EN_TD
